RUGGED XMC

Explore Our Range Of Rugged XMC, Specifically Designed For Use In Harsh Industrial Environments, Including Military, Defense, Space, & Other Industrial Applications.

Switched Mezzanine Card standard providing high-speed, switched interconnect protocols on the existing, widely deployed CMC (Common Mezzanine Card) IEEE P1386 form factor.

Programmable FPGA TXMC633 | Campion-ES

User Programmable FPGA: TXMC633
Reconfigurable FPGA with 64 TTL I/O / 32 Diff. I/O.
Standard single-width XMC module conforming to ANSI/VITA 42.0-2008
PCI Express (Base Specification 1.1) compliant interface conforming to ANSI/VITA 42.3-2006.
IPMI resource: FRU hardware definition information stored in on-board EEPROM.
TXMC633-1xR: Xilinx XC6SLX45T-2 Spartan6 FPGA configured by serial Flash. TXMC633-2xR: Xilinx XC6SLX100T-2 Spartan6 FPGA configured by serial Flash. FPGA clock options: Local clock generator as source for the FPGA internal PLL / 1 DDR3 SDRAM bank, 64M x 16 (128 MB).
Front I/O lines 64 TTL I/O, or 32 differential I/O or 32 TTL I/O and 16 differential I/O.
TTL signaling voltage, EIA-422/-485 signaling level or M-LVDS Standard (TIA/EIA-899)
Direction individually programmable.
Back I/O lines 64 FPGA I/Os on P14 and 3 FPGA Multi-Gigabit-Transceiver on P16.
P14 with 64 single ended LVCMOS33 or 32 differential LVDS33 depends on Spartan6 Configuration.
I/O access: 64 I/O lines on HD68 front connector.
64 I/O lines on P14 Mezzanine connector.
3 MGT RxTx lines on P16 Mezzanine connector, Operating temperature -40°C to +85°C
CONTACT US FOR MORE DETAILS

User Programmable FPGA: TXMC635
Reconfigurable FPGA with 48 x TTL IO 32 x 16 bit Analog In / 8 x 16 bit Analog Out.
Standard single-width XMC module conforming to ANSI/VITA 42.0-2008;ANSI/VITA 42.3-2006.
IPMI resource: FRU hardware definition information stored in on-board EEPROM.
TXMC635-10R Xilinx XC6SLX45T-2 Spartan6 FPGA. TXMC635-20R Xilinx XC6SLX100T-2 Spartan6 FPGA.
Serial Flash for FPGA Configuration.
FPGA clock options: Local clock generator as source for the FPGA internal PLL.
1 DDR3 SDRAM bank, 64M x 16 (128 MB).
Front I/O lines: 48 TTL I/O, TTL signaling voltage direction individually programmable.
8 channels single-ended 16 bit analog output. Programmable output voltage: ±10V, ±10.2564V or ±10.5263V, Conversion time: typ.10µs, 32 single ended or 16 differential analog inputs: 16 bit resolution, Conversion time: 1.1µs, User programmable input voltage range, Factory calibration.
Back I/O lines: 64 single ended or 32 differential back I/O lines on rear connector P14, 3 FPGA Multi-Gigabit-Transceiver on rear connector P16.
Operating temperature -40°C to +85°C
CONTACT US FOR MORE DETAILS

Programmable FPGA TXMC635 | Campion-ES
Programmable FPGA TXMC638 | Campion-ES

User Programmable FPGA: TXMC638
Reconfigurable FPGA with 24 x 16 bit Analog Input.
Standard single width XMC.
PCI Express x4 Link (Base Specification 1.1) compliant interface conforming to ANSI/VITA 42.3-2006.
IPMI resource: FRU hardware definition information stored in on-board EEPROM.
TXMC638 FPGA options: TXMC638-10R Xilinx XC7K160T-2FBG676I Kintex-7, TXMC638-11R Xilinx XC7K325T-2FBG676I Kintex-7, TXMC638-12R Xilinx XC7K410T-2FBG676I Kintex-7.
Serial Flash for FPGA Configuration.
FPGA clock options: Local clock generator as source for the FPGA internal PLL, free programmable Si514 Oscillator.
DDR3 SDRAM bank, 256M x 32 Bit (1GB).
Front I/O lines: 24 differential analog inputs with16 bit resolution, 5Msps, Factory calibration.
Back I/O lines: 64 single ended or 32 differential back I/O lines on rear connector P14, 4 FPGA Multi-Gigabit-Transceiver on rear connector P16.
Operating temperature -40°C to +85°C
CONTACT US FOR MORE DETAILS

Network: TXMC385
Conduction Cooled, 4x 10/100/1000 Mbit/s Ethernet Interface.
Conduction cooled four channel Ethernet interface based on Intel 82574IT Controller.
Four IEEE 802.3 compliant Gigabit LAN interfaces; Provides 10/100/1000Mbit/s, half or full-duplex. configurable transmit and receive FIFOs.
XMC P16 back I/O.
Status LEDs.
Operating temperature -40°C to +85°C
CONTACT US FOR MORE DETAILS

Network TXMC385 | Campion-ES

Network: TXMC387
Conduction Cooled Dual Channel 10 Gigabit Ethernet Interface.
Two Channel Ethernet interface based on Dual Port Intel X540 10 Gbit/s Ethernet Controller.
Full duplex.
16 Mbit serial flash memory connected to Ethernet Controller.
x8 PCI Express compliant Interface.
IPMI resource: FRU hardware definition information stored in on-board EEPROM.
XMC P16 back I/O.
Operating temperature -40°C to +85°C (Card Edge)
CONTACT US FOR MORE DETAILS

Network TXMC387 | Campion-ES

Network: TXMC885
Four Channel Gigabit Ethernet Interface.
Four channel Ethernet interface based on Intel 82574IT Controller.
Four IEEE 802.3 compliant Gigabit LAN interfaces.
Provides 10/100/1000Mbit/s, half or full-duplex.
configurable transmit and receive FIFOs.
Network connection via RJ45.
Status LEDs.
Operating temperature -40°C to +85°C
CONTACT US FOR MORE DETAILS

Network TXMC885 | Campion-ES

Network: TXMC889
Four Channel SFP Gigabit Ethernet Interface
Four Channel Intel I350 Gigabit Ethernet controller providing SerDes Interfaces.
x4 PCI Express (Base Specification 2.1) compliant interface conforming to ANSI/VITA 42.3.
Four SFP Cage.
Direct Attach Twinaxial Cable, SFPwire Active Optical Cable, 1000Base-SX, 1000Base-LX, 1000/100/10Base-T.
1 Mbit serial flash memory for Boot ROM, 128 Kbit EEPROM storing configuration data,
Operating temperature -40°C to +85°C
CONTACT US FOR MORE DETAILS

Network TXMC889 | Campion-ES

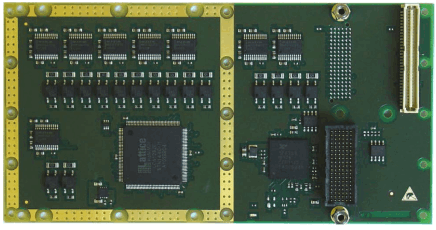

Communication: TXMC375
Conduction Cooled XMC with 8 Channel RS232/RS422/RS485 Programmable Serial Interface
8 channels of high performance RS232/RS422/RS485 programmable serial interface.
Programmable baud rates: RS232: up to 1 Mbps, RS422/RS485: up to 10 Mbps.
Exar XR17V358; Programmable Interfaces: RS232, RS422, RS485 full duplex, RS485 half duplex.
Programmable Termination for RS422/RS485.
Support of RxD, TxD, RTS, CTS and GND for each RS232 channel.
RxD+/-, TxD+/- and GND for each RS422/RS485 FD channel.
D+/- and GND for each RS485 HD channel.
256 byte transmit FIFO per channel, 256 byte receive FIFO per channel, Readable FIFO levels.
ESD protected transceiver (up to ± 15KV).
P14 Back I/O(TXMC375-10R) or P16 Back I/O (TXMC375-20R).
Operating temperature -40°C to +85°C
CONTACT US FOR MORE DETAILS

Communication TXMC375 | Campion-ES

Communication: TXMC376

Conduction Cooled XMC with 4 Channel RS232/RS422/RS485 Programmable Serial Interface
4 channels of high performance RS232/RS422/RS485 programmable serial interface.
Programmable baud rates: RS232: up to 1 Mbps, RS422/RS485: up to 10 Mbps.
Exar XR17V354.
Programmable Interfaces: RS232, RS422, RS485 full duplex, RS485 half duplex.
Programmable Termination for RS422/RS485.
Support of RxD, TxD, RTS, CTS and GND for each RS232 channel.
RxD+/-, TxD+/- and GND for each RS422/RS485 FD channel.
D+/- and GND for each RS485 HD channel.
256 byte transmit FIFO per channel, 256 byte receive FIFO per channel, Readable FIFO levels.
ESD protected transceiver (up to ± 15KV).
P14 Back I/O (TXMC376-10R) or P16 Back I/O (TXMC376-20R).
Operating temperature -40°C to +85°C
CONTACT US FOR MORE DETAILS

Communication TXMC376 | Campion-ES

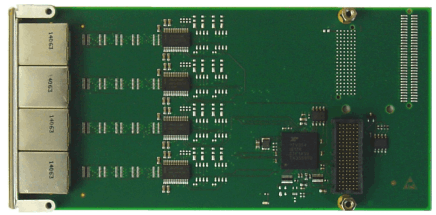

Communication: TXMC463
4 Channel Serial RS232/RS422 ( RJ45)
4 channels of high performance RS232 / RS422 asynchronous serial interface.
Programmable baud rates: RS232: up to 1 Mbps, RS422: up to 16 Mbps; Quad UART: Exar XR17V354.
Support of RxD, TxD, RTS, CTS, DTR, DCD, DSR/RI and GND for each RS232 channel.
RxD+/-, TxD+/- and GND on front and RxD+/-, TxD+/-, RTS+/-, CTS+/- and GND on back I/O for each RS422 channel.
256 byte transmit FIFO per channel, 256 byte receive FIFO per channel, Readable FIFO levels.
Global Interrupt Source Register.
General Purpose 16 bit Timer/Counter; ESD protected transceiver (up to ± 15KV).
4x RJ45 connector mounted on front panel.
Operating temperature -40°C to +85°C
CONTACT US FOR MORE DETAILS

Communication TXMC463 | Campion-ES

Communication: TXMC465
8 Channel RS232/RS422/RS485 Programmable Serial Interface.
8 channels of high performance RS232/RS422/RS485 programmable serial interface.
Programmable baud rates: RS232: up to 1 Mbps, RS422/RS485: up to 10 Mbps.
Exar XR17V358.
Programmable Interfaces: RS232, RS422, RS485 full duplex, RS485 half duplex.
Programmable Termination for RS422/RS485.
Support of RxD, TxD, RTS, CTS and GND for each RS232 channel.
RxD+/-, TxD+/- and GND for each RS422/RS485 FD channel.
D+/- and GND for each RS485 HD channel.
256 byte transmit FIFO per channel, 256 byte receive FIFO per channel, Readable FIFO levels; ESD protected transceiver (up to ± 15KV).
HD50 SCSI-2 type connector.
P16 Back I/O (TXMC465-20R) or P14 Back I/O (TXMC465-30R).
Operating temperature -40°C to +85°C
CONTACT US FOR MORE DETAILS

Communication TXMC465 | Campion-ES

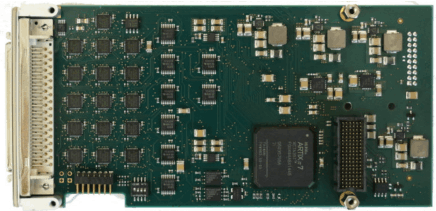

Analog I/O: TXMC590
16 Channel Thermo-/Strain-Measurement XMC
16 analog thermo-/strain measurement channels based on ADuC7061 Microcontroller, capable of measuring: ungrounded Thermocouples, Resistive Sensors (e.g. RTD), Strain Gauges.
16x Sensor excitation onboard.
Onboard Cold Junction Compensation for Thermocouples with several options.
16 pre-defined parameter sets for standard sensors.
16 user-definable parameter sets for specific sensors storable in flash memory.
IPMI resource: FRU hardware definition information stored in onboard EEPROM.
Interrupts configurable for channel configuration cycles and for channel conversion cycles.
Operating temperature: -40°C to +85°C
CONTACT US FOR MORE DETAILS
